KNS Precision AK Adjustable Gas Piston

Description for KNS Precision AK Adjustable Gas Piston

Finally, a drop-in solution for taming the notoriously-overgassed AK platform. The patent-pending KNS AK Adjustable Gas Piston is a replacement for the AK’s piston head that attaches to the bolt carrier in about 10 minutes with no major gunsmithing or permanent modification required. The user is granted an extremely wide range of gas adjustment for suppressed and unsuppressed use, as well as a variety of different kinds of ammunition.

A good rule of thumb to determine if their piston will be useful, is if your gun throws the brass over 15 feet. This can signify excess gas pushing the carrier back at a higher velocity and pressure, than is needed for effective operation. This causes more recoil, more wear and tear, and less controllability. Many users are surprised to feel the difference in how their gun shoots with our Adjustable Gas Piston System installed.

There is no need to remove or replace your gas block for adjustability. Just change the piston, and go shoot.

Small Bore/Caliber pistons are for .223?, 5.56mm, and 5.45mm. They work better in AK’s of ALL CALIBERS with less excess gas. Large Bore/Caliber pistons are for 7.62×39, .308?, and 7.62x54r.

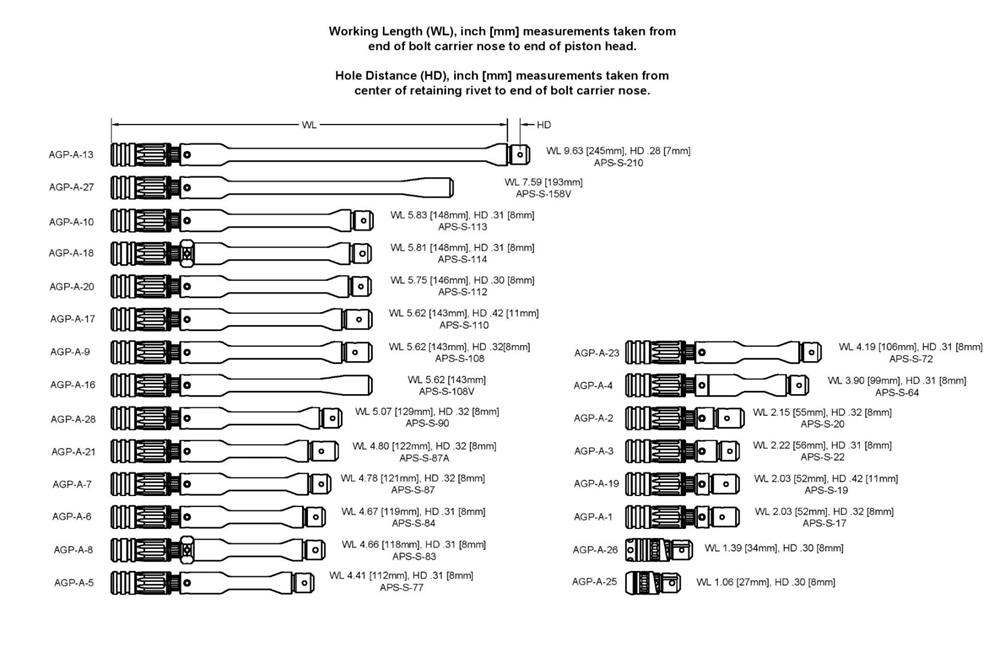

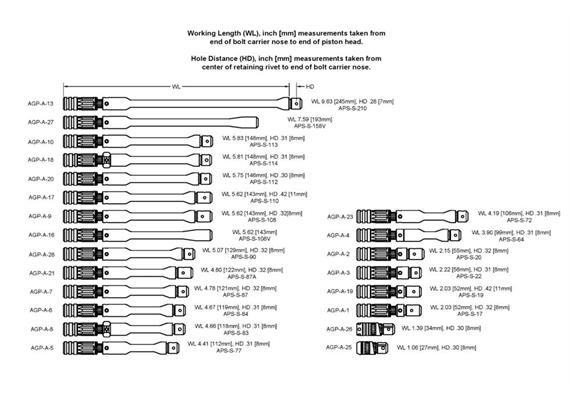

Working Length (WL) measurements taken from end of bolt carrier nose to end of piston head.

Hole Distance (HD) measurements taken from center of retaining revet to end of bolt carrier nose

AGP-A-10 [WL 5.83"/148mm][HD .31"/8mm]
AGP-A-9 (WL 5.62"/143mm][HD .32"/8mm]
AGP-A-17 [WL 5.62"/143mm][HD .42"/11mm]
AGP-A-21 [WL 4.80"/122mm][HD .32"/8mm]
AGP-A-13 [WL 3.90"/99mm][HD .30"/8mm]
AGP-A-4 [WL 3.90"/99mm][HD .30"/8mm]
AGP-A-5 [WL 4.41"/112mm][HD .31"/8mm]
AGP-A-6 [WL 4.67"/119mm][HD .31"/8mm]
AGP-A-7 [WL 4.78"/121mm][HD .32"/8mm]
AGP-A-16S [WL 5.62"/143mm][HD .32"/8mm]
AGP-A-16L [WL 5.62"/143mm][HD .32"/8mm]
AGP-A-20L [WL 5.75"/146mm][HD .30"/8mm]
AGP-A-20S [WL 5.75"/146mm][HD .30"/8mm]
AGP-A-8 [WL 2.15"/55mm][HD .32"/8mm]
AGP-A-2 [WL 2.15"/55mm][HD .32"/8mm]
AGP-A-3 [WL 2.22"/56mm][HD .31"/8mm]
AGP-A-1 [WL 2.03"/52mm][HD .32"/8mm]
AGP-A-19 [WL 2.03"/52mm][HD .42"/11mm]
AGP-A-18 [WL 4.20"/107mm][HD .45"/11mm]
AGP-A-22 [WL 4.20"/107mm][HD .45"/11mm]



Key Benefits:

Tool-Free Adjustment
Reduces Recoil
Tune almost any AK for suppressed use
Decrease cyclic rate for full-auto fire
US-made 922r Compliance Part
Piston head assembly made from corrosion-resistant stainless steel
All surface parts nitrided for durable, low-friction, & easily-cleaned operation
Patent-Pending
