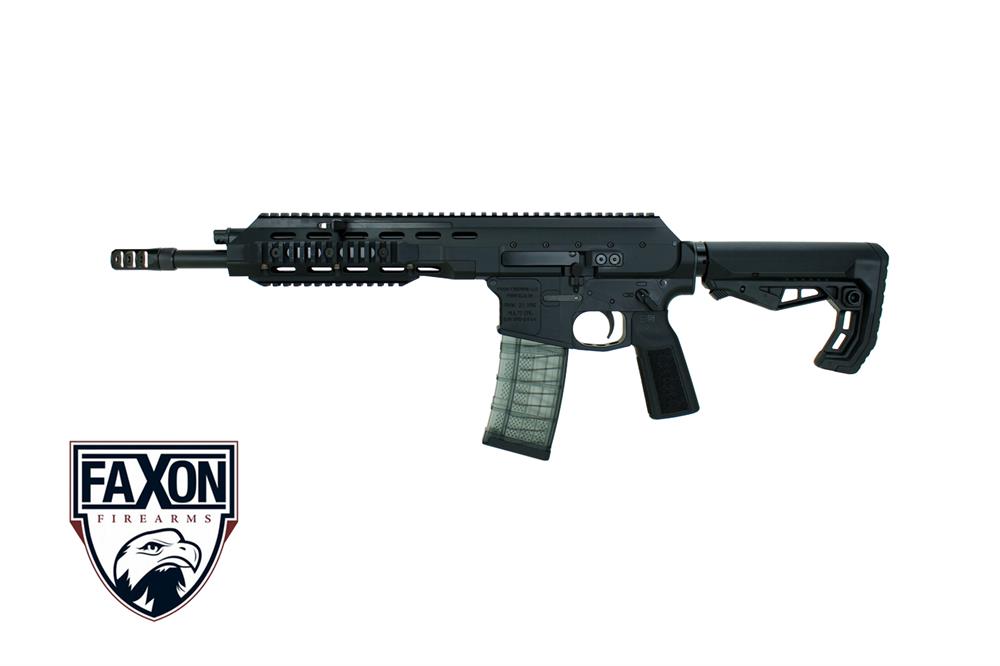

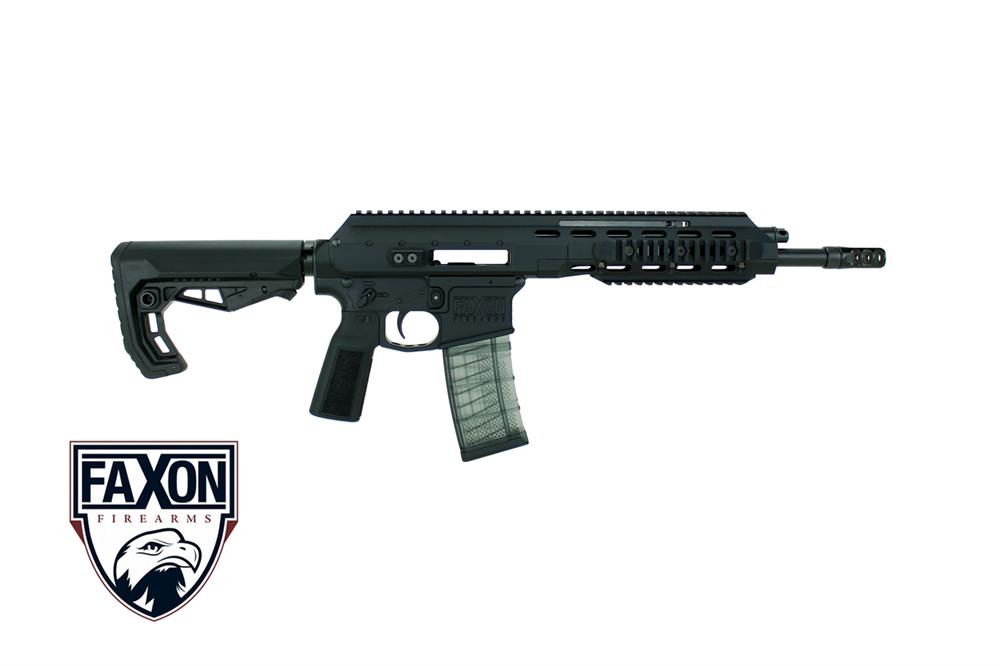

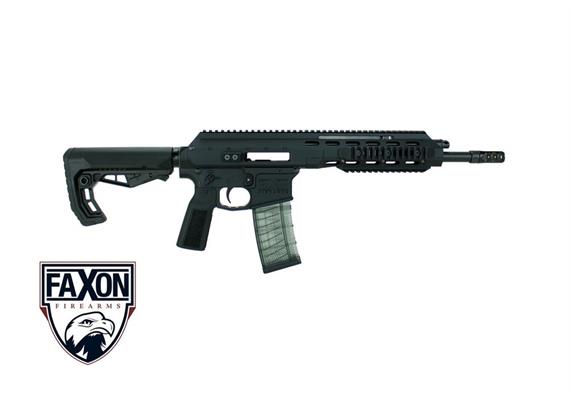

Halbautomat FAXON ARAK-21 XRS 5.56 Nato Ambi Pistol 12.5"

Beschreibung zu Halbautomat FAXON ARAK-21 XRS 5.56 Nato Ambi Pistol 12.5"

ARAK-21® FEATURES

No Recoil
No buffer system needed
Bolt can be used variably, case ejection possible on the left or right side
Ambidex Foldable Charging Handle, usage possible on the left or right side
Adjustable Gas Piston System
Ambidex Safety Selector
Dual Bolt Ejector
Set-screw retained take-down pin spring for easy assembly
Lower with Nylon Tipped Tension Set Screw
Enlarged, integrated ventilated trigger guard
Guarded, guided magazine release compatible with Norgon Ambi options
No tools are required for disassembly
ARAK-21 XRS Upper Receivers are also compatible to Standard AR-15 MIL-SPEC Lower Receivers

Components of the ARAK-21® Upper Receiver

The ARAK-21® is a gas piston actuated, complete upper receiver assembly designed to seamlessly interface with the standard AR-15 platform. The total extent of the interface is simply the take down pin, and the pivot pin. The new ARAK-21® upper receiver offers you all its features with no change to your current lower receiver and can be installed in less than one minute with no tools.

The BAU is comprised of the barrel, gas block, muzzle brake, gas piston, gas adjuster, and barrel trunnion. The only removable part of this assembly is the gas adjuster knob. The gas adjuster knob has 4 settings. Three of the settings allow different gas flows for optimum operation, and one setting blocks the gas flow for a single shot operation.

The upper receiver includes the charging block, standard charging handle, lower forearm with screws, three aluminum full length picatinny rails, three insulating shims, bolt carrier assembly, lower recoil lug with spring guide rod, and dual recoil spring system. Along with your new ARAK-21® upper receiver you will receive your owners manual, and two allen wrenches that will fit the screws that attach the lower forearm, and the front picatinny rails.

Other features include:

The upper receiver is fully machined from an aircraft grade 7075-T6 aluminum billet in a one piece design that incorporates a full length picatinny rail (Mil-STD-1913) on the top and three additional rails on the muzzle end of the receiver, making it a full M4 quad rail upper. The top picatinny rail is laser engraved for optic placement. There are also half-length picatinny rails available.

Long stroke variable setting gas piston system. There are three options for gas flow, and one for no gas flow. This allows for single shot operation. There is also a clean out port for the gas block between the gas cylinder, and the barrel.

Charging handle is ambidextrous, non-reciprocating, foldable, spring returned and is easily relocated from left to right side without tools by the operator.
Self-contained firing pin retention system enclosed in a rectangular bolt carrier that no longer requires a cotter pin.
Bolted in hardened steel rail system for the bolt carrier to ride on, this allows a metal on metal wear surface for better wear characteristics and a much smoother operation.
Dual Bolt Ejector
The ARAK-21® system allows for a folding stock to be added, as our recoil system does not extend beyond the upper receiver to fully operate. This eliminates the noise and feel of the buffer tube cycling back and forth.
ARAK-21® OTHER DETAILS

Semi-Auto System
Type III Hard Coat Anodized Black
Graceful complex curves show off the attention to detail and machining
B5 Systems AR-15 Pistol Grip
Mil-Spec AR-15 Buffer Tube
Mil-Spec 6-Positions stock
Lower Receiver is made with AR-15 Mil-Spec Diameter
Collapsed lenght: 751 mm
Extended lenght: 834 mm
Weight: 3297g
ARAK-21 XRS INCLUDES:

ARAK-21 XRS Rifle 5.56 / .223 Rem
Manual
BAU Removal Tools
EXW with 30rd Magazine, on request with 10rd Magazine!
